Sandvik DR410i Blast Hole Drilling Rig

Maker:  Siks Scale Models
Model No:  024-020
Scale:  1:50
Review Date:  August 2025


SSM Index
Mining Index


Cranes Etc Model Rating
Packaging   (max 10) 9
Detail   (max 30) 29
Features   (max 20) 19
Quality   (max 25) 24
Price   (max 15) 9
Overall   (max 100) 90%

Footnotes



Sandvik DR410i Blast Hole Drilling Rig Video
Picture box.

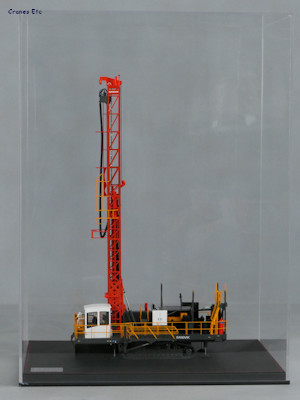

Nice display case.

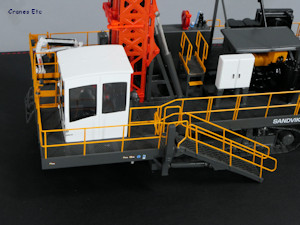

Excellent metal hand rails.

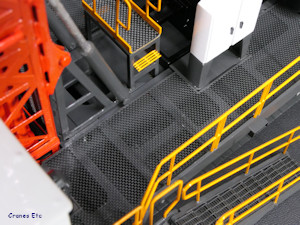

Mesh walkways are superb.

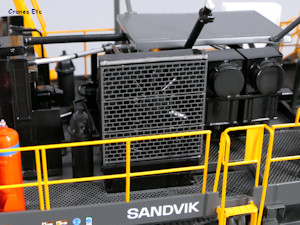

Etched grille with fan behind.

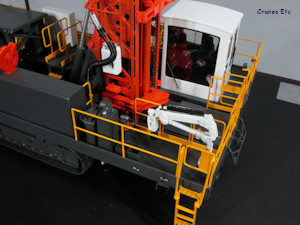

Derrick crane on the deck.
Detailed drill bit.

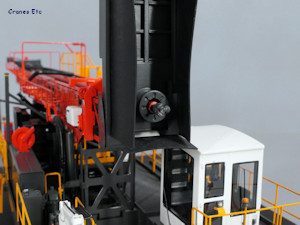

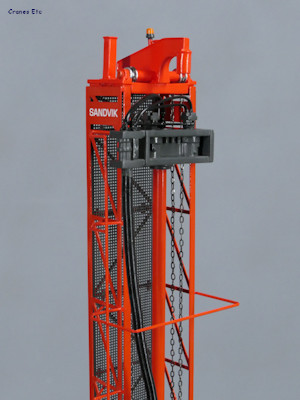

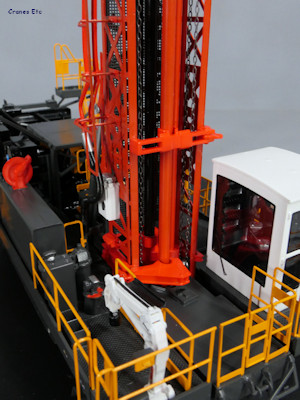

Rotary head has detailed hydraulics.  Very detailed mast structure.
Removed from the display base.

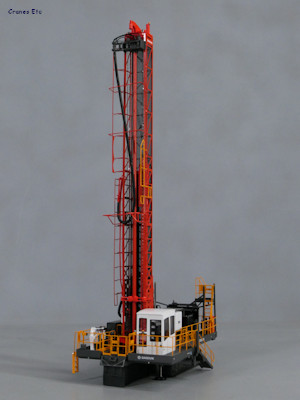

Very authentic appearance.

The DR410i is a rotary blast hole drill.  It can achieve a single pass hole depth of 14m.  The operating weight is in the range 63-70 tonnes.

Packaging

The model is very robustly packed in outer and inner shipping cartons complete with corner protectors.  Inside those, foam rubber protects a large picture box.  The packaging protects a Perspex display case which itself is wrapped with clear film.

There were no missing parts or defects on the review model.

There is some information about the real machine on the box.  An instruction sheet is included which describes the main functionality.

Detail

The display case is high quality and the base has sharp red stitching and a metal name badge.

The underside of the carrier has a detailed frame which reflects the nature of the production method used.  It is CNC milled and is precisely formed.  There is a large Siks Scale Models plate.

The tracks are metal and mounted on detailed track frames.  There are precision engineered rollers top and bottom.  The levelling jacks have formed metal pads but the pistons have visible screw threads.

The deck is excellent with finely crafted metal handrails all around and tiny graphics add authentic detail.  A particular high point is the quality of the etched footways and grilles, and this carries through to the steps on stairs and ladders.  At the rear there is an attachment plate (presumably for the electric version) and it has extremely small holes drilled.  Underneath the deck there are rubber skirts around the drill head.

The cab has discrete windscreen wipers and the internal detail is very good.  The open engine is made up of many different components and it is highly detailed.  The fan enclosures are superb.  The model also features the optional derrick crane for bit handling and it has small graphics applied.  Fire suppression equipment is also modelled.

The mast is not diecast but is laser cut metal and this allows the complexity to be perfectly represented.  A full mesh platform is also included.  Hose guide frames are also modelled and there is a beacon light at the top.

The rotary head has the motors with hydraulic hoses running to them.  The drill pipe has a tiny but detailed drill bit.  The chain drive for the rotary head is also included.  At the bottom the breakout clamp is provided.

Features

The tracks roll smoothly and are spring loaded to maintain tension.

The levelling jacks can be lowered by unscrewing.

The hydraulic stairs can be lowered and raised smoothly.

An access ladder extension can be raised and lowered.

The derrick crane boom can be raised and lowered.

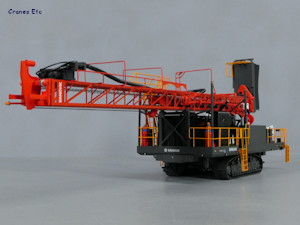

The mast folds horizontally smoothly but there is not enough friction in the hydraulic rams to pose angled drilling.

The rotary head can be raised and lowered fully and the chain drive works.  It is a little stiff so care is needed when moving it.

The breakout clamp at the bottom of the drill pipe can be rotated in and out of position.

The model can be removed from its display case.  The instructions say this would be at the owner's risk due to the delicacy of the model, but in practice undoing the securing bolts is straightforward.

Quality

This is very high quality model.  The metal content is very high and the various model making techniques employed produce high fidelity.

The paintwork and graphics are generally excellent.

Price

This is an expensive model driven largely by very low production numbers.  However, it offers an exceptional model for the price.

Overall

This is an excellent model, and it is made using an impressive array of modelling techniques.  It is particularly authentic looking and is a superb display piece in its display case. Siks Scale Models has set a very high standard with this model.

Footnotes

The model first appeared in July 2025.  It was produced in very low numbers.

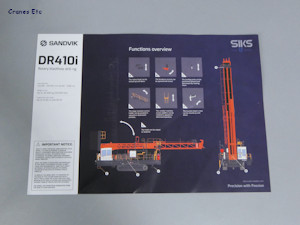

Instruction sheet.

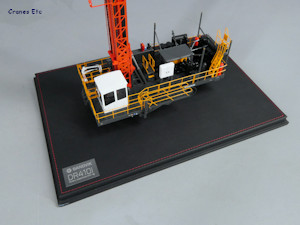

High quality base with name plate.

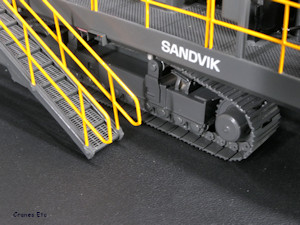

Detailed track fame and stairs.

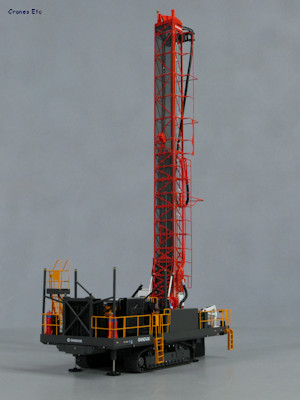

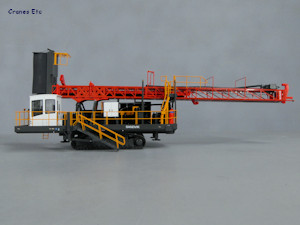

Profile view.

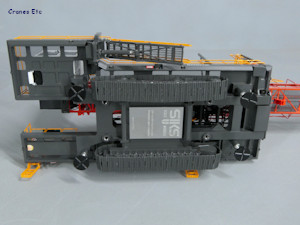

Underneath.

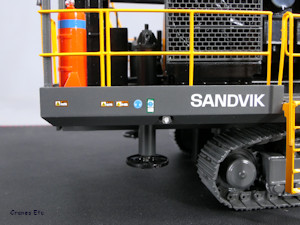

Tiny graphics add detail.

Breakout clamp rotates.

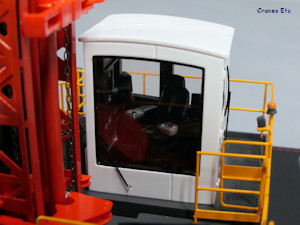

Detailed cab interior.
Nice dolly included.
Levelling jacks lowered.

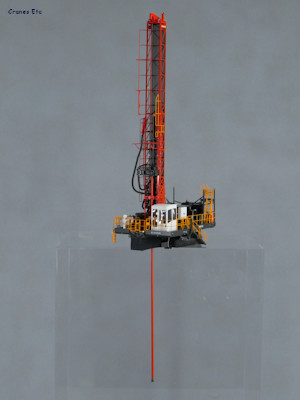

Drilling at depth.
