| The large
box. |
 |
 |

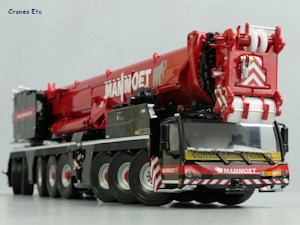

| Very good
steering angle. |
 |
| Detailed
chassis. |
 |
| The graphic
of the Mammoet name is slightly offset on one side of
the review model. |
 |
| Rigged with
the rear outrigger box fitted.
|
|
|
 |

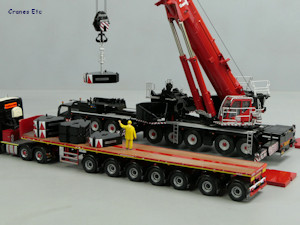

| On the road. |
 |

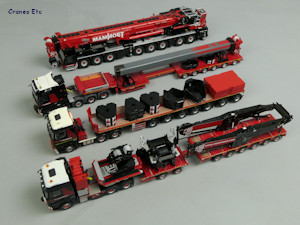

| Some of the
parts forming a convoy. |
 |
|
T5 boom extension as a load. |
 |

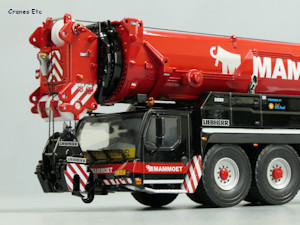

| Detailed
crane. |
 |
| Excellent
profile. |
 |
|
Two other hook blocks are included. Cheek weights
are not fitted. |
 |
|
Lifting ballast blocks with
the lifting device. |
 |
|
Tilting cab. |
|
The Liebherr 1650-8.1 mobile crane has a maximum capacity
of 700 tonnes.
The crane can be configured with a
TY Guy boom support arrangement and this option is
possible with the model.
This model is in the colours of the Dutch heavy lifting
and transport specialist Mammoet.
Packaging
The model comes in a Mammoet-branded
box design with the model held within expanded polystyrene trays
which are held together with plastic clips. The parts
are wrapped.
There were no missing parts
or defects on the review model.
A Mammoet Collector Card was missing from the reviewed
model.
The model has an
excellent instruction manual. It
includes a parts list, and clear photos and English text
describe the model.
It includes additional parts compared to the standard
Liebherr version of the model. There are two extra
5 tonne ballast blocks, and a set of four additional
lifting chains.
Detail
The chassis is very highly detailed with replicated
transmission and suspension systems. It also
includes the central rear outrigger.
The tyres are very good with a fine tread pattern, and branding moulded in the sidewalls. The wheels have
different hubs for driven and non-driven axles.
The carrier cab has beacon lights and at the front there is a hitch
for tying a hook whilst travelling. There is a
realistic number plate. The door steps are textured and
the door handles are highlighted. Interior detailing is
also high quality.
Behind the carrier cab the engine area is highly detailed
with textured surfaces and a mesh
grille. Tiny graphics add detail throughout.
The outrigger pads have a working pinning mechanism
which allows the pads to be fixed in an offset way so
they are within the footprint of the crane when the
outrigger beams are retracted. The
pistons are smooth with the screw mechanism being
internal so they look realistic. Tiny graphics add to
the authentic look.
Large metal spreader plates with
useable lifting points are also included with the model.
The profile of the outriggers under load is very good
and they are nice and straight. The rear outrigger
box has lifting eyes so it can be posed being installed.

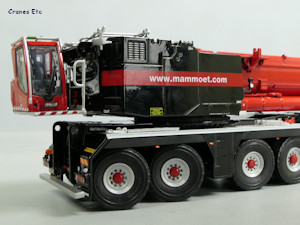

The crane cab has metal
handrails with an etched mesh walkway. There is also a silvered mirror
and window wipers. The interior detail is very
good.
Underneath the crane body the
toothed slewing ring is visible. The crane body also
has a high level of detailing with small graphics, metal handrails and ladders, and textured surfaces.

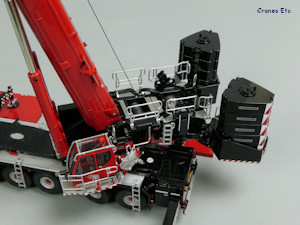

The counterweight consists of a number of parts.
The frame is complex and it includes a winch drum.
Two ballast trays are separate parts. The counterweight blocks are nicely
decorated including the weight being marked with
graphics, and have useable lifting
eyes. A ballast block lifting device is included
with the model. Securing plates sit on top of the
counterweight stacks.
The main boom rams are very nice metal parts with
complex hydraulic detailing at the bottom, and the boom
sections have very thin walls which provide a realistic
profile. Detailing on the lowest boom section
includes spooling drums, and pipework within the
casting. The Mammoet colour scheme looks very
sharp. The boom head is also very good with
fine detailing and plastic pulleys which replicate the
plastic ones used on the real crane. A long safety hoist
cut-off chain and block hangs from the boom top and
there is a realistic tying-off point also.
The TY Guying system for the telescopic boom is of heavy
construction and is mainly metal. Tiny graphics add detail
to the system.
Three metal hooks are supplied, and they are excellent quality
with working safety latches.
Another nice touch is that a lifting beam, shackles and
chains are also
included, and these are high quality.
Features
All axles have sprung suspension which is connected to
form floating groups. Each axle also steers with
some very good steering angles being possible.
The
central rear outrigger can be lowered and this would be
used for erection of the crane on site if the rear
outrigger beams have been transported separately.
Handrails on the crane body can be folded up from the
transport mode. Four access ladders can be folded
down from the carrier deck.
The outrigger beams can extended and the pads lowered, and feature
an excellent pad pinning feature with fine wire clips.
The range of downward travel on the pistons is very
good, and the model can be supported wheels-free.
The operator's cab rotates from the transport position, and can
also be tilted.
The crane rotates smoothly without rocking.
The counterweight system can be mounted on the carrier deck during self-assembly.
The counterweight frame has useable lifting jacks to enable the
counterweight to be connected and disconnected from the
crane body although this was difficult to use on the
review model.
Raising the boom is easy with the locking mechanism on
the main boom rams using a key to tighten grub screws
on the jacket tops.
Telescoping the boom is smooth and easy with a spring lock
to clip each boom section. It is possible to lock
each section at approximately 46%, 92% and 100% extension.
The
TY guy system can be displayed as a transport load with
a transport bar included to maintain the shape.

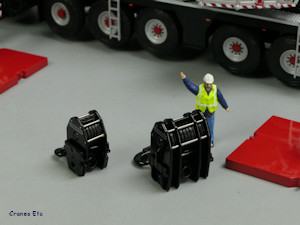

When in place the system performs well with each side tensioned
by using the key in the smoothly operating winches which
have a positive brake. A reasonable tension can be maintained
in the system.
The key is also used to operate the main winch. It has
a push-in action with a positive brake, and it works
very well. However, the plastic pulleys in
the boom head have thin grooves such that the rope does
not sit fully meaning that it easily skates off during
use.
Different hook blocks can be reeved, and they each have
rotating hooks and working safety latches.
Lifting chains and a lifting beam and shackles
can be used, as can a separate set of chains with this
Mammoet version. A lifting device for the ballast
blocks is also useable.
Quality
This is a high quality model which is made well, and the
parts fit together well too.
The paintwork and graphics are generally excellent.
Price
It is
very good value for a limited edition large crane model.
Overall
This builds upon the previous LTM 1500 model and sets a
very high standard for a large mobile crane model.
Functionality and detailing is top notch, and the
inclusion of parts such as lifting chains completes the
model.
Footnotes
The model first appeared in Liebherr
yellow at the Bauma exhibition in October 2022.
The WSI Model number is 52-2045. |
|
 |
|
|
 |

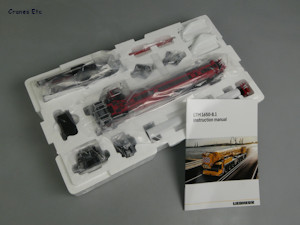

| The tray
and manual. |
 |
| Basic
light weight transport configuration. |
 |
| Travelling
without a hook block. |
 |
| A bumper at
the rear instead of the outrigger box.. |
 |
|

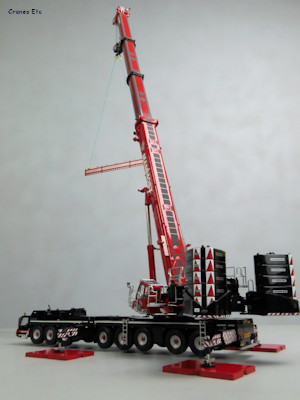

Configured like the real crane shown on the box. |
 |
| Hook block
has configurable cheek weights. |
 |
| TY Guy and
other parts. |
 |
|
Rigged with the included lifting beam. |
|
|
 |
|
Lifting a tower crane section using the chains included
with this version of the model.
|
 |
| TY Guy arms
closed. |
|
|
